Water Level Meters

Reels

With a stand-alone design, convenient carrying handle, and sturdy probe holder, the standard reels are ergonomically designed for ease of use. They are robust and smooth running. The battery is housed in a convenient drawer in the front of the reel, allowing quick replacement. The reels are equipped with an on/off sensitivity switch, light, buzzer, battery test button, brake and a tape guide stored on the frame.



Water Level Meter Specifications
Operating temperature of reel: -20°C to +50°C
Submerged operating temperature (tape/probe): -20°C to +80°C
Wetted materials (tape/probe): P7: PVDF, Santoprene, ®Delrin, ®Viton, 316 stainless steel
P2: MDPE, neoprene, Delrin, 316 stainless steel
Probe pressure rating: P7: Fully submersible to depth of all tape lengths
Reel IP Rating: IP64 (dust and splash proof)
Tape lengths: P7: 100 to 5000 ft, 30 - 1500 m
P2: 100 to 1000 ft, 30 - 300 m



Length Options

Solinst Model 101 P7 and P2 Water Level Meters are available on reels as shown below, in the following standard lengths:

Small Reel * 100 ft. 30 m
  * 200 ft. 60 m
  * 300 ft. 100 m
Medium Reel * 500 ft. 150 m
  * 750 ft. 250 m
  * 1000 ft. 300 m
Large Reel 1250 ft. 400 m
X-Large Reel 1650 ft. 500 m
  2000 ft. 600 m

* Polyethylene tapes are only available in these lengths



solinst  water level meters  tape guides  power reels  carrying bags  400 m water depth tapes  tape lengths  water level indicators  water level tape lengths  water depth tapes  100 ft water level meters  100 ft water depth tapes  30 m water depth tapes  30 m water level meters  water level indicator 60m standard image

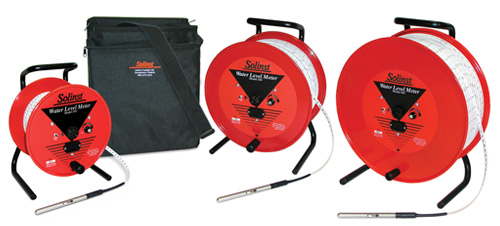

Model 101 Water Level Meter Reels



solinst  water level meters  tape guides  power reels  carrying bags  400 m water depth tapes  tape lengths  water level indicators  water level tape lengths  water depth tapes  100 ft water level meters  100 ft water depth tapes  30 m water depth tapes  30 m water level meters  water level indicator 60m standard image

Carrying Case: Small and medium padded nylon carrying cases are available, as an optional extra. Their design has a convenient shoulder strap, zippered front pocket, zippered top, and a grommet in the base to prevent moisture build-up.

Power Reels: Power reels can be very useful to allow faster or less strenuous operation of longer lengths of tape. They are available as 12V or 110V.

Replacement Parts: Replacement probes, tapes and other spare parts are available.
